19/20 rig. Seldén´s new profile fitted with MDS full batten car, double spreaders, complete with a rod kick with gas spring and mechanical backstay tensioner. Tricolor and anchor light at top of mast, deck light, combi red/green light . Spinnaker equipment with one aluminium pole. The mast is designed for an inner forestay (cutter stay). Standard single rope reef system for reefs 1 and 2. Third reef traditional.
Selden's C227-profile is light and made specially for MDS-sail cars.
Inside mast profile cables are in separate cable profile. Extra cable slot for radar is optional.

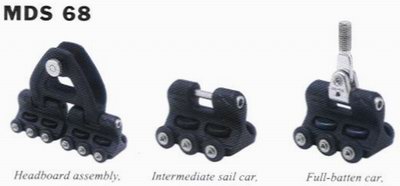

Multi-Directional Support
MDS sail cars make sail hoisting easy and quick.
A full batten mainsail always creates a side load on the cars, particularly when you release the halyard for taking a reef.
Each car has side-load absorbing wheels that run against the guiding flanges in the luff groove. The interaction between the mast section and the MDS car deals with longitudinal loads as well as side loads. This is the essence of the MDS concept. Since the cars need no external track, there is also less weight aloft, which Maestro boats try to avoid in all construction.
The MDS cars are easy to keep clean and are easy to install or remove from the luff groove.

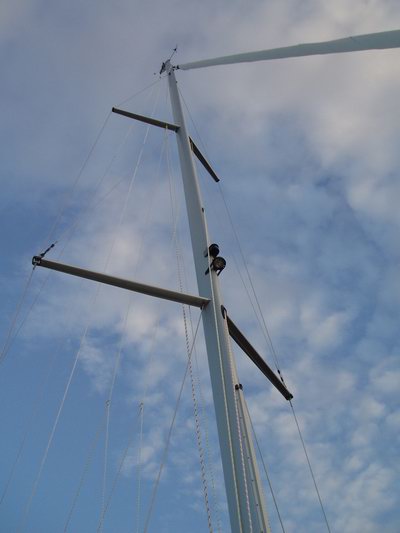

DOUBLE SWEPT BACK SPREADERS
Maestro 40 rig is equipped with double 20 degree swept back spreaders. This means that running backstays are not needed.
Maestro 40 has linked rigging at lower spreaders. At lower spreader end intermediate shroud (D2) and cap shroud (V2-V3) are linked to lower cap shroud (V1).
Racing top as standard.
Deck light is standard.
Middle of mast is red/green light.
Cutter stay fitting at mast is standard.
Spinnaker pole track and car are standard.
SINGLE LINE REEFING SYSTEM
Maestro 40 boom is equipped with Single Line Reef system. All you do is ease off the halyard to premarked reefing point points and then haul in on the reefing line.
A system of guided blocks inside the boom ensures that the lines do not tangle. The system has a 2:1 gear ratio, making reefing fast and simple, without having to leave the cockpit.

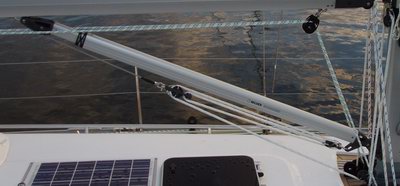

GAS RODKICKER VANG
Rodkicker with gas spring prevents the boom from dropping into cockpit or onto the sprayhood. When the kicking strap is released, it lifts boom opening the leech of the sail.
The rodkicker with gas spring replaces the topping lift, making reefing fast and simple.

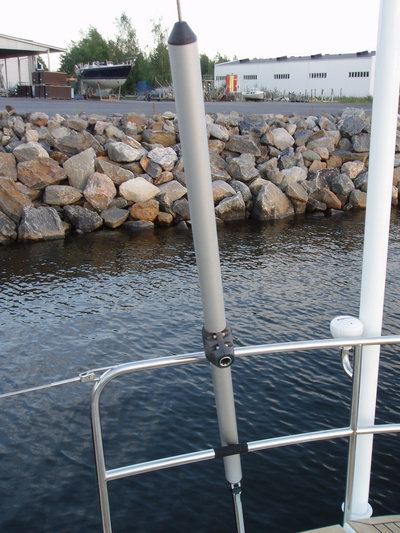

BACKSTAY TENSIONER
Maestro 40 has mechanical backstay tensioner, in a 2:1 backstay.
Backstay tensioner is operated with a standard winch handle.
Max stroke is 400 mm. North Sails full batten mainsail is designed so that backstay is adjusted 120mm and this means that 240mm effective stroke is used.

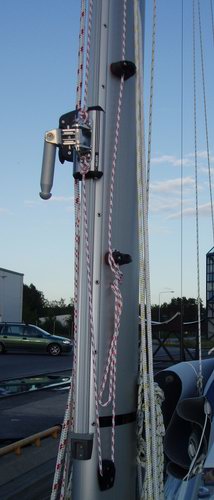

SPINNAKER POLE TRACK AND CAR
Maestro 40 has as standard spinnaker pole track and car at mast.
Control lines are lead to optimum height via Harken blocks and cams cleats with fairleads.
Spinnaker pole car is with bayonet pole attachment. 30mm wide track and ball bearings makes car height adjusting light and easy.

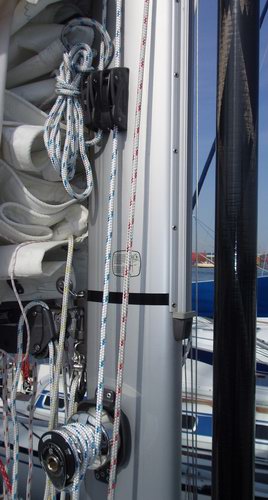

HALYARD HOISTING AT MAST
At mast is one Andersén 28 ST/1-SP with two Rutgerson RC750 clutches for jib and spinnaker halyards.
Usually spinnaker halyard is lead to cockpit.
At picture also optional storm jib halyard and its Rutgerson RC750 clutch.

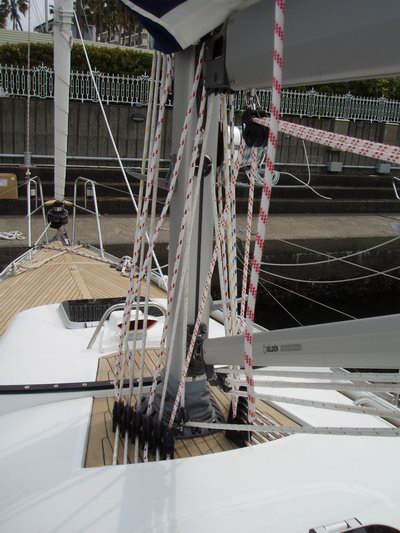

RUNNING RIGGING
Maestro 40 is delivered with complete set of halyards, sheets and control lines.
Main and jib halyard is combination of wire and rope. Spinnaker halyard is rope.
Main sheet is 10 mm Dyneema rope and Double Harken Black Magic® AirBlocks® .
All reefing lines. 1st and 2nd are single line reef and 3rd is traditional slab reef.
Jib sheets.
Spinnaker sheet and guy with snap shackle. Spinnaker pole uphaul control line and 3:1 downhaul control line.
Topping lift and main sail outhaul lines.
Kicker strap.
Windex is standard equipment at Maestro 40.
In picture also seen Racing top and Raymarine wind vane transducer.
NAVIGATION LIGHTS
Maestro 40 has at top of mast combination tricolor / anchor light and middle of mast red / green light.
Under sail only tricolor is used. This means low power consumption and less possible failure points.
When motoring anchor and red/green light is used.
At anchor only mast top anchor light is used.
LED Navigation lights (option)
To even more reduce energy consumption at navigation lights, Maestro 40 can be equipped with latest LED-technoly. With Lopolight LED navigation lights you can reduce power consumption dramatically. Need for lamp changes is none.
Lopolight is available in aluminum or carbon cover. In pictures carbon lights in pushpit and pulpit.
To add more visibility to your Windex - change just cover to your Lopolight.
ROLL REEFING SYSTEM

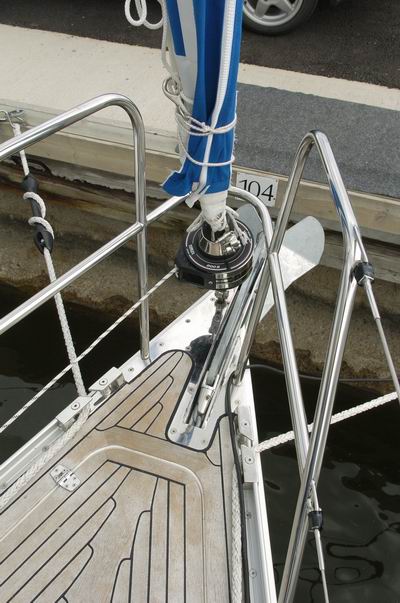

FURLEX 300S (option)
Furlex, with its attractive combination of aluminium, black reinforced polyamide and stainless steel, adds more than a touch of style to Maestro 40.
The smooth lines are not only pleasing to the eye, they also make Furlex very durable and easy on the sail and on the sailor.
SPINNAKER POLE
As standard Maestro 40 is equipped with aluminium spinnaker pole.

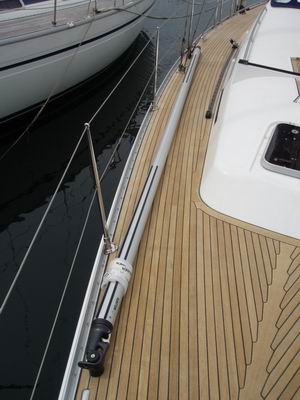

Spinnaker pole is stored front of mast or if ST-jib track is installed (as in picture) at deck.

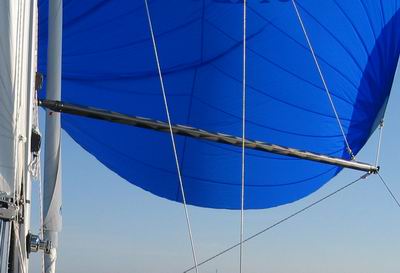

- Carbon spinnaker boom is light and easy to handle.
- Standard aluminium pole weight is app. 8,4 kg and carbon pole weight is app. 6,2 kg. Weight reduction is 26 % which is lot in a moving boat.

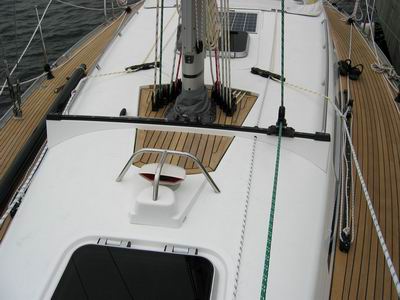

- ST track
- all blocks
- Dyneema sheet
- Fully installer Ready-To-Use.
See ST-jib in action movie (QuickTime movie)
- Tacking, view from cockpit (6,0 Mb)
- Port to starboard tack, front view (3,4 Mb)
- Starboard to port tack, front view (4,4 Mb)
NOTE! You need QuickTime player to view movies and downloading movies can take time!

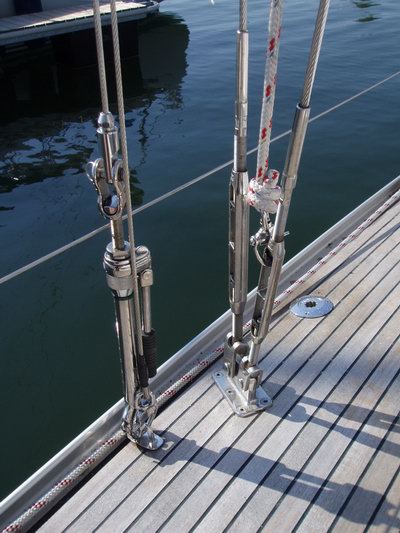

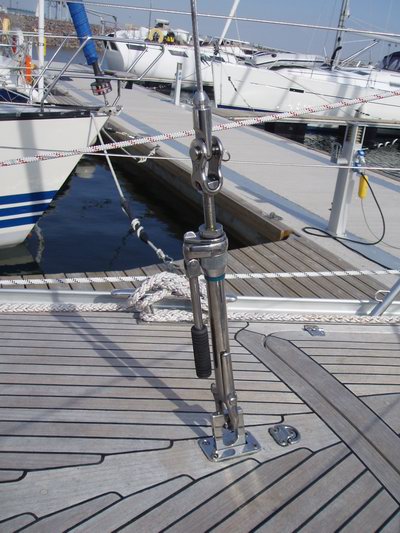

- Cutter stay fitting at deck
- Complete kit of wire and halyard.
- Wichard tensioner.

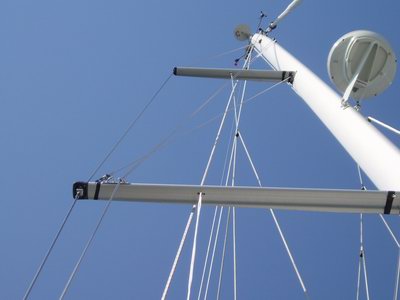

Cutter stay and cutter sail halyard are stored in special eye and routed via hook at spreader.

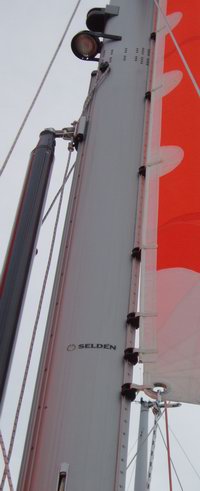

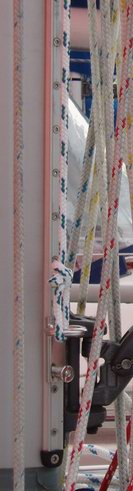

- Trysail track mounted to mast.
- Complete kit with plastic travelers for trysail.
